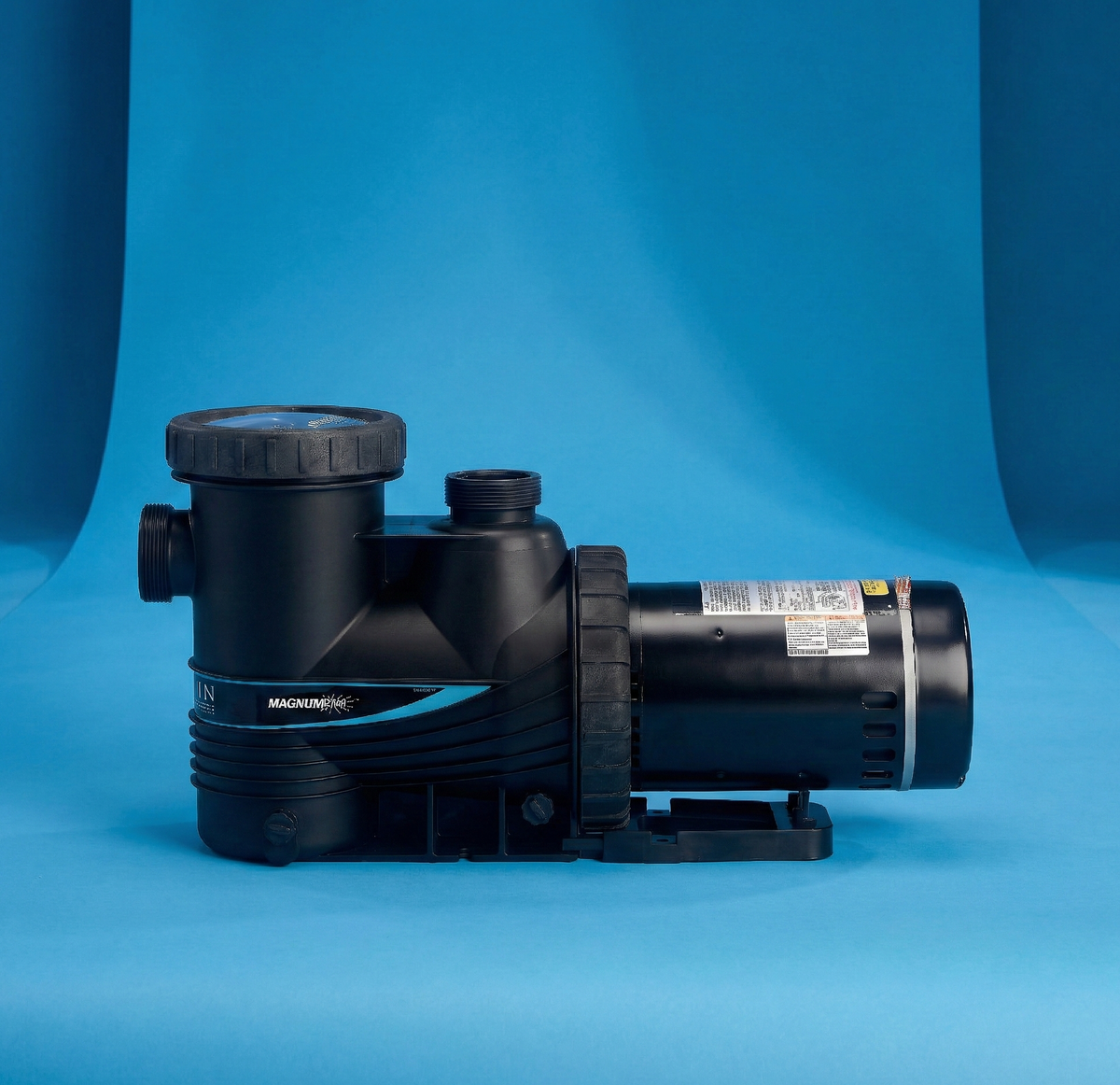

Carvin 2HP two-speed in-ground pool pump

Name: Carvin 2HP two-speed in-ground pool pump
Brand: CARVIN
SKU: 94027220
Price: 999.00 CAD
Availability: InStock

Carvin 2HP two-speed in-ground pool pump

$999.00 CAD

Sale Sold out

Shipping calculated at checkout.

Low stock: 6 left

Carvin Magnum Force 2 HP two-speed circulation pump, designed for residential in-ground pools. Its two-speed configuration allows for low speed to be used for routine circulation and high speed when more flow is required. Features a corrosion-resistant one-piece body, a large-capacity strainer basket, and a tool-free Ring-Lok system.

2 HPPower

2 speedsMotor

2 inConnections

230 VPower supply

Before ordering, please confirm your power supply with us. This pump operates on a 230 V power supply, and its two-speed configuration may require different wiring or controls than a single-speed pump. Also, check the size of the connections and the available space in your equipment room before replacing.

Highlights

Two speedsAllows for low speed to be used for routine circulation and high speed when more flow is needed.

2 HP for in-ground poolDesigned to ensure circulation and filtration for a residential in-ground pool when the hydraulic installation is compatible.

Air bleed systemThe Magnum Force design incorporates an air bleed system that improves the pump's priming capabilities.

Tool-free basket accessThe Ring-Lok system facilitates access to the large-capacity strainer basket to simplify routine maintenance.

One-piece housingConstruction designed to resist corrosion and the normal operating conditions of pool equipment.

Air-cooled heat sinkThe heat dissipation system helps protect the mechanical seal in the event of accidental dry running.

Why two speeds?

Low speed	Suitable for routine circulation when the installation does not require the pump's maximum flow.
High speed	Available when the installation or specific equipment requires more flow.
Consumption	Low speed allows for longer filtration without running the motor at full speed—this is where savings are achieved compared to a single-speed pump. The extent depends on your filtration hours and your installation.
Noise comfort	Operating at a reduced speed can also lower the perceived noise level compared to high-speed operation.

Specifications

Brand	Carvin
Range	Magnum Force
Product code	94027220
Model	2UTMF-S2
Power	2 HP
Motor	2 speeds
Power supply	230 V
Frequency	60 Hz
Type	Circulation pump for in-ground pools
Connections	2 in
Maximum water temperature	104 °F / 40 °C
Strainer basket	Large capacity, tool-free access with Ring-Lok system
Housing	Corrosion-resistant one-piece construction
Priming	Air bleed system designed to improve priming capabilities
Thermal protection	Air-cooled heat sink

Applications

Main filtration	Residential in-ground pools whose hydraulic requirements match the pump's specifications.
Replacement	Replacement of a compatible Carvin Magnum Force pump, after validating electrical and hydraulic specifications.
2 in connection installations	Suitable for installations configured with 2-inch plumbing connections compatible with the pump.
Basket maintenance	The Ring-Lok system facilitates access to the basket when regular cleaning is needed.

Installation notes

Power supply	This model is intended for a 230 V / 60 Hz power supply. Confirm your electrical installation before purchasing.
Electrical connection	The electrical installation must be performed in accordance with applicable codes and requirements. A two-speed configuration may require a compatible control.
Hydraulic compatibility	Check the connection diameter, plumbing specifications, and available space before replacing an existing pump.
Priming	Follow the priming procedure indicated by the manufacturer before the first start-up or after maintenance on the hydraulic circuit.
Speed control	To automate switching between the two speeds, use a timer, relay, or control system compatible with a two-speed motor.

Frequently asked questions

Why choose a two-speed pump? It allows you to choose between a reduced speed for routine circulation and a high speed when more flow is required. This avoids running the pump at its maximum speed all the time. If your pump runs several hours a day all summer, that is where the price difference compared to a single-speed pump is recovered.

Will it replace my current pump? It can replace some Magnum Force pumps or other compatible models, but you must check the voltage, connection diameter, installation dimensions, and pool hydraulic requirements before ordering.

Do I need a timer or a controller? A compatible control allows for automating the switch between the two speeds. The type of control required depends on your electrical installation and your existing control system.

What is the difference from a variable-speed pump? A two-speed pump operates at two predetermined speeds. A variable-speed pump offers several operating speeds and allows for more precise adjustment of flow according to the installation's needs.

Is the basket easy to clean? Yes. The Ring-Lok system is designed to allow tool-free access to the basket and simplify routine maintenance.

We can validate your replacement before purchase Send us a photo of your current pump and your equipment room, as well as the information visible on the motor nameplate. We can verify the voltage, connections, and main specifications before guiding you toward the appropriate model. Email us (418) 871-0658
